ASTM A672 GR60 CL22 Longitudinal Welded LSAW Steel Pipe
Products Description
LSAW Pipe,the whole name is Longitudinal Submerged Arc Welded steel pipe
Grade: API 5L GRB-X70 X80 PSL1 PSL2
ASTM A672 GR60 CL22 ( we have supplied this grade to Brazil oil company: BR Petrobras)
Size Range:
Diameter: 406.4mm-1800mm
Thickness:10mm-30mm
Length: 10-12meter, or according to client request
Packing: loose packing
Surface: oil;Galvanized;Black Painted;3LPE;FBE;Epoxy
End: Plain end and Beveled end
Outside Diameter | 406.4mm -1800mm |
Wall Thickness | 10 mm - 60mm |
Length | 5.8m 6m 11.8m 12m or customized |
Technique | Hot rolled JCOE or UOE |
Standard& Grade | GB/T 3091 GB/T9711 Q235 Q345 |
API 5L A B X42 X46 X52 X56 X60 X65 X70 PSL1 PSL2 | |
ASTM A53 GR A/ B ASTM A252 GR3 ; ASTM A672 GR60 CL22 ..... | |
EN10210 EN10219 EN10255 S235 S275 S355 S235JR;S355J2H etc | |
Surface Coating | Hot-Dipped Galvanized;Black Painted;3LPE(external)/3PP/FBE etc |
Container Loading | 5.8m load 20ft container;Above 6m load 40ft container |
Pipe Ends | Plain Ends;Beveled Ends(Above OD 60.3mm can done BE);welded flange |
Package | pack in steel strips;standard export sea packing |
Application | petroleum and natural gas project (ground or buried underground) |
Mechanical properties of ASTM A672 gr c60 cl22 pipe |
|
|
|
|
|
Grade | Tensile strength of welding points (N/mm2) | Mechanical composition |
| ||
Elongation (%) | Tensile Stregth (N/mm2) | Yield point (N/mm2) |
| ||
C60 | 415~550 | 25 | 415~550 | 220 |
|
A672 c60 cl22 EFW pipes chemical composition |
|
|
|
|
|
Grade | Chemical composition | ||||
C | Si | P | Mn | S | |
C60 | 0.21 | 0.13~0.45 | 0.035 | 0.55~0.98 | 0.035 |
What is LSAW steel pipe definition?
LSAW means Longitudinal Submerge Arc Welding carbon steel pipe. It is a kind of SAW pipe made of steel plates that were hot rolled by JCOE or UOE manufacturing process. JCOE technology means the shaping and forming processes. This forming process JCOE include during producing as well as the inner and outer welding and cold expansion carried out after welding. When compared UOE vs JCOE pipes, LSAW steel pipe manufacturers in China can produce more sizes as: Pipe Outside Diameter: 406mm - 1524mm;
UOE (Uing and Oing forming) LSAW Steel Pipes UOE is a method used for production of longitudinally welded large diameter pipes. Longitudinal edges of steel plates are first beveled using carbide milling equipment. Beveled plates are then formed into a U shape using a U-press and subsequently into an O shape using an O-press. In accordance with different requirements of the customers, the welded pipe can be expanded either by mechanical or hydrostatic expander to improve dimensional accuracy, and eliminate residual stress

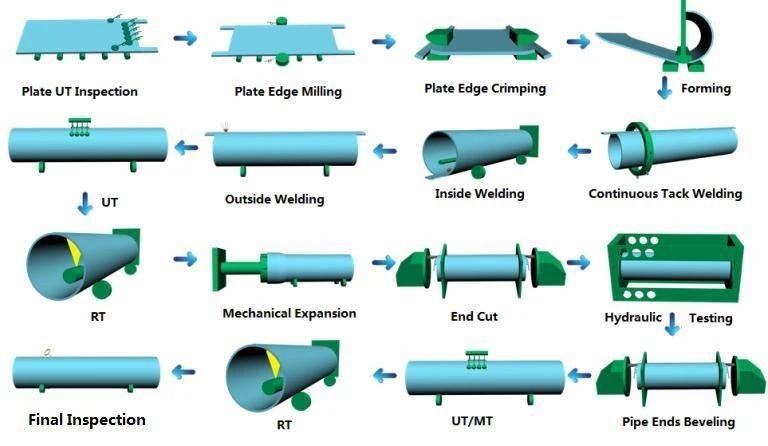

SAWL Pipe(JOCE) Manufacturing Process
